Economy Model

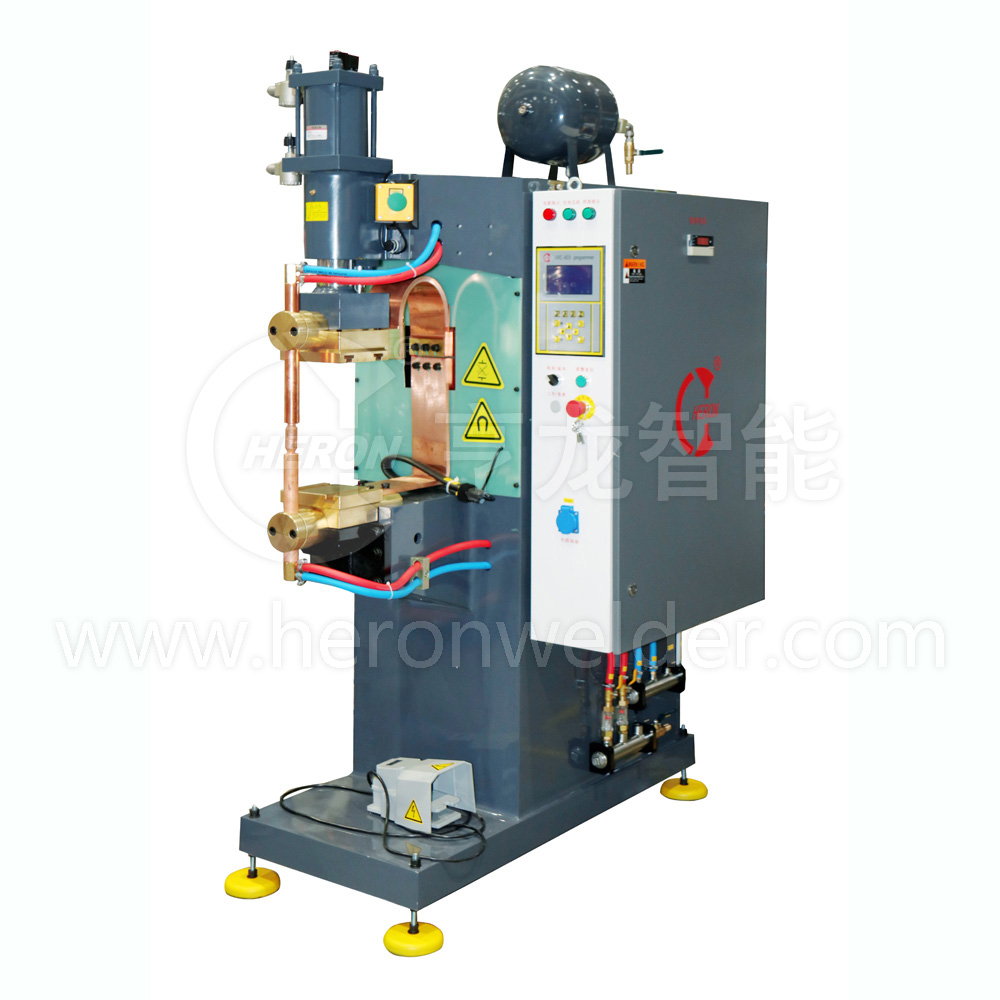

3/4.5/6KJ Capacitor Discharge Spot/Press Welder

DR-3000/4500/6000-T1L00A

Product Features


Middle voltage film non-polarized capacitor, less likely to decay and explode

Welding transformer without water cooling

Compact body design

Short welding process, small heat affected zone, energy saving and environmental protection

Product range from 500J-6000J

Stable welding quality



Basic Parameters

Model #

DR-1500

DR-3000

DR-4500

DR-6000

Volume of capacitor

μf

15000

30000

45000

60000

Rated Capacity

KVA

3

5

10

15

Power Supply

V/Φ/Hz

380/1/50

Max. Primary Current

A

14

23

26

40

Primary Cable

MM2

6

16

16

16

Max. Short Circuit Current

KA

20

28

38

58

Rated Duty Cycle

%

50

50

50

50

Secondary Empty Voltage

V

10

10

10/11.4

11/12

Welding Cylinder Size

Φ*L

Φ80*60

Φ100*60

Φ160*80

Φ160*80

Max. Working Pressure

N

2500

3900

10000

10000

Throat Depth

MM

353

353

427

427

Arm Gap

MM

220

220

300

300

Dimensions

H(MM)

1459

1459

1885

1885

L(MM)

1070

1070

1239

1239

W(MM)

664

664

754

754
